RC Airplane Wing Loading - How to choose wing loading





When designing or flying a model aircraft, one of the crucial factors to consider is wing loading. This concept significantly impacts the aircraft’s performance, including its speed, stall characteristics, and landing behavior. In this article, we’ll explore what wing loading is, how to calculate it, and how it influences different types of RC models.

What is Wing Loading?

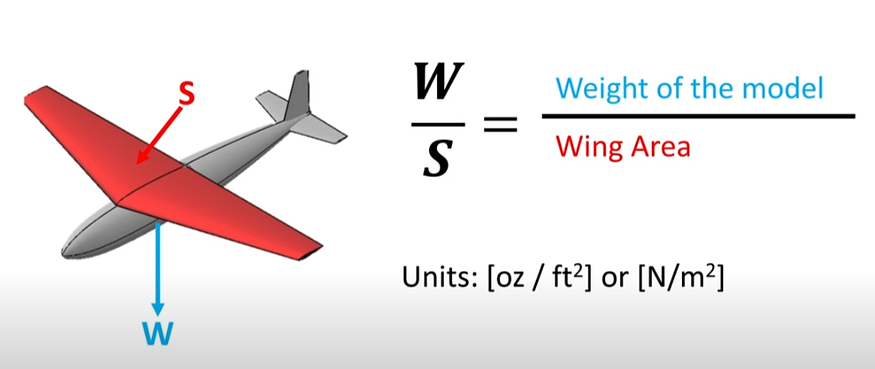

Wing loading is defined as the weight of the aircraft divided by the area of its wings. It is typically expressed in units of ounces per square foot or Newtons per square meter. This measurement is essential for understanding how an aircraft will perform in flight.

Press enter or click to view image in full size

The Importance of Wing Loading

Wing loading directly affects several aspects of an aircraft’s performance:

  1. Stall Speed: Wing loading helps determine the stall speed of a model aircraft. The stall speed is the minimum speed at which the aircraft can maintain level flight before the wing loses lift and the aircraft starts to descend. If the aircraft flies slower than this speed, it will stall.
  2. Landing Speed: Knowing the stall speed also helps in calculating the landing speed. To safely land, a margin above the stall speed is recommended.
  3. Flight Characteristics: Different types of RC models have varying wing loadings that influence their flight characteristics:
  • Gliders and Sailplanes: These typically have low wing loadings, which result in low stall speeds, ease of flight, larger wings, and a “floaty” feeling in the air. Wing loading values for these are typically less than 10–15 oz/ft2.
  • Sport Models: These have intermediate wing loadings, offering a balance between ease of flight and maneuverability. Values range from 15–20 oz/ft2.
  • Pattern Models: These have higher wing loadings, leading to higher stall speeds, faster speeds, and smaller wings, making them more challenging to fly but more agile. Values range from 23–26 oz/ft2.


Calculating Wing Loading and Stall Speed

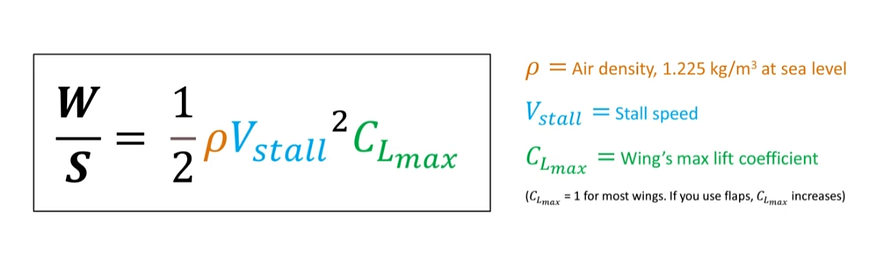

To calculate the stall speed, use the following formula:

Press enter or click to view image in full size
Rearrange the equation to calculate stall speed

Where:

  • ρ is the air density, approximately 1.225 kg/m³ at sea level.
  • W is the weight of the aircraft in Newtons. Note that to convert kilograms to Newtons, multiply the weight in kilograms by 9.81.
  • S is the wing area in square meters.
  • CLmax ​​ is the maximum lift coefficient of the wing. For most wings, this value is around 1. If flaps are used, ​​ CLmax increases.

To determine the landing speed, add a 20% safety margin to the stall speed.

Designing with Wing Loading in Mind

When designing an RC model, follow these steps:

  1. Estimate the Aircraft’s Gross Weight: Determine the total weight of the aircraft, including all components.
  2. Decide on the Wing Loading: Based on how you intend to fly the model, choose a suitable wing loading. Lower wing loadings are generally easier for casual flying, while higher wing loadings offer better performance for aerobatic maneuvers.
  3. Calculate Wing Area: Use the formula provided to find the required wing area. If the wing design is already set, you can calculate the wing loading to predict the flight characteristics.

Balancing Performance and Safety

Higher wing loadings contribute to stronger, faster, and less floaty aircraft. However, they also result in higher stall and landing speeds, which can make the aircraft more difficult to handle and land safely. To mitigate high landing speeds, you can use flaps to increase the CLmax ​​ and thus reduce the stall speed.

Conclusion

Understanding wing loading is key to designing and flying RC model aircraft. It affects the aircraft’s stall speed, landing speed, and overall flight characteristics. By carefully considering and calculating wing loading, you can optimize your model’s performance and enhance your flying experience.

Thank you for reading! Subscribe for more information about designing your own aircraft.
