Designing a Model Canard Airplane: A Beginner’s Step-by-Step Guide

 Designing a Canard airplane offers a unique set of benefits and challenges. A Canard aircraft features a smaller wing, known as the Canard wing, positioned in front of the main wing. This configuration can enhance maneuverability and improve stall safety. The process of designing a Canard airplane can be simplified by understanding a few key principles and calculations. This guide will walk you through the essential steps to create a stable and effective Canard model airplane.

You can also watch the video below:





Understanding the Canard Design

A Canard airplane is distinct because it includes a smaller front wing (the Canard) and a larger main wing at the rear. This setup can reduce the main wing’s loading, leading to improved aircraft maneuverability and enhanced safety during stalls. In designing such a model, it’s crucial to ensure stability in flight by properly sizing the Canard and determining the appropriate center of gravity (CG) location.

Calculating Wing Areas

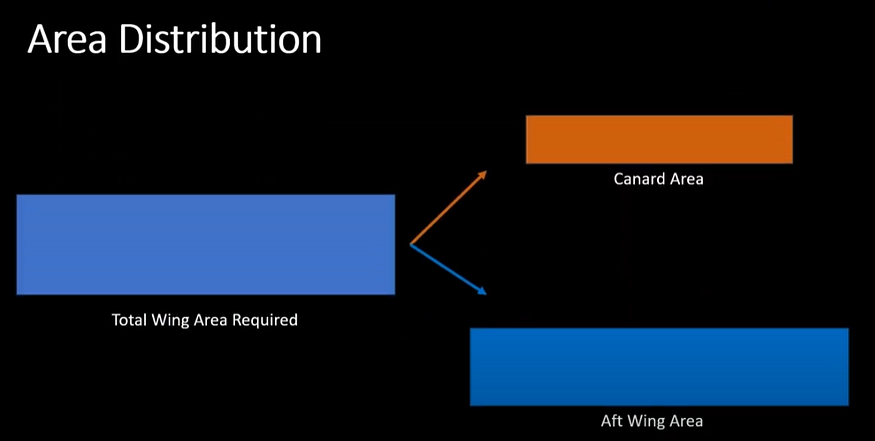

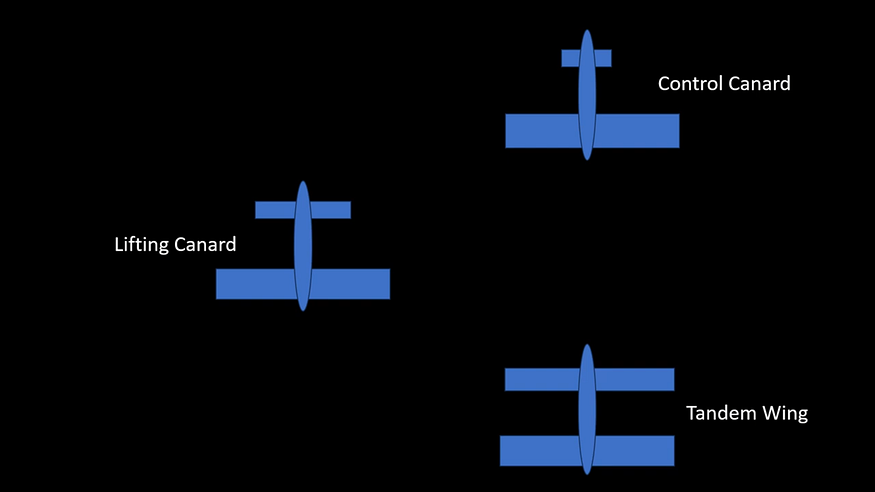

Before diving into the specifics of Canard design, you need to calculate the required wing area based on the aircraft’s wing loading. Once you have the total wing area, you must allocate it between the Canard and the main wing. The choice between a control Canard (for maneuverability) and a lifting Canard (which functions as an additional wing) will influence this allocation. For example, you might decide that 15% of the total wing area should be dedicated to the Canard, leaving 85% for the main wing.

Press enter or click to view image in full size
Press enter or click to view image in full size
Press enter or click to view image in full size

Ensuring Pitch Stability

Pitch stability is critical for the safety and performance of a Canard airplane. There are two primary requirements to ensure pitch stability:

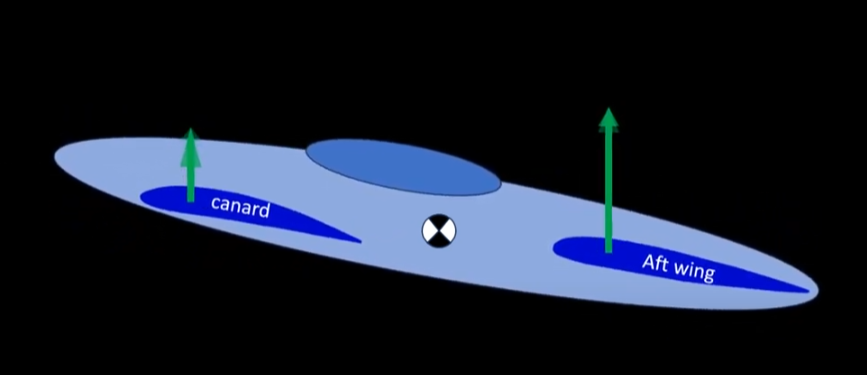

  1. Stalling Order: The Canard wing must stall before the main wing in flight. If the Canard stalls first, it will lose lift and help the aircraft return to its stable position. Conversely, if the main wing stalls first, the aircraft could become unstable as the Canard continues to lift.
Press enter or click to view image in full size

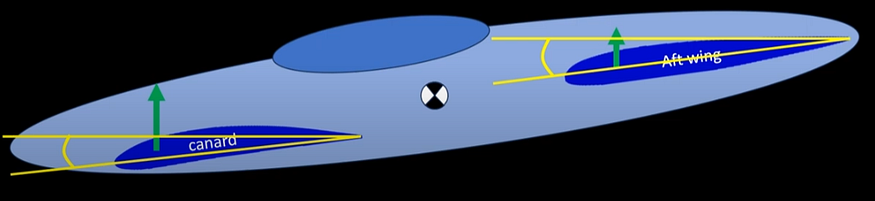

2. Zero-Lift Angle: The main wing’s airfoil should reach its zero-lift angle before the Canard’s. For instance, if the main wing’s airfoil has a zero-lift angle of -2 degrees, the Canard’s airfoil should have a more negative zero-lift angle, such as -3 degrees. This ensures that in a nose-down dive, the main wing will lose lift before the Canard, helping to stabilize the aircraft.

Press enter or click to view image in full size

Designing for Stability

To achieve these stability requirements, consider the following design aspects:

  • Aspect Ratio: Design the Canard with a higher aspect ratio than the main wing. The aspect ratio is the ratio of the wingspan to the average wing width and affects the lift and drag characteristics of the wings.
  • Airfoil Camber: Use a heavily cambered airfoil for the Canard to achieve the necessary zero-lift angle, while a moderately cambered airfoil is suitable for the main wing. For example, the NACA 4412 airfoil is heavily cambered and can be used for the Canard, whereas the NACA 2412, with moderate camber, is appropriate for the main wing.

Determining Neutral Point and CG Location

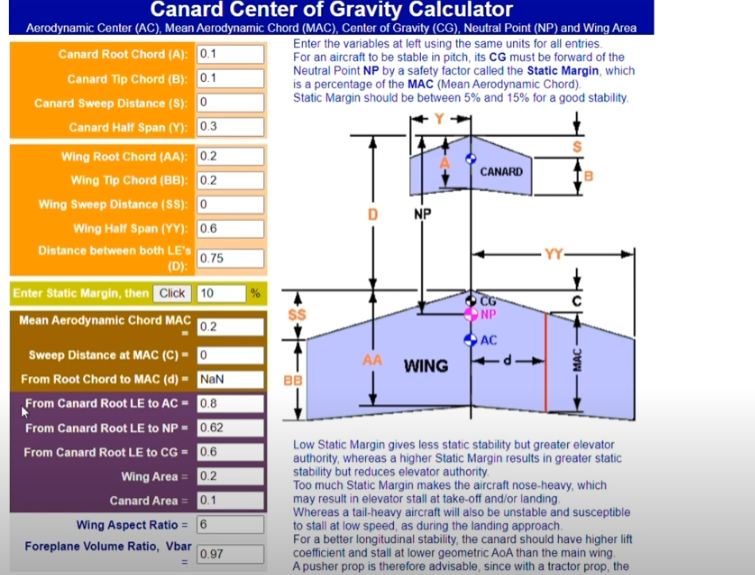

The final step in the design process involves determining the plane’s neutral point and CG location. This can be achieved using online calculator here: https://rcplanes.online/cg_canard.htm

Press enter or click to view image in full size
https://rcplanes.online/cg_canard.htm

By inputting the design parameters — such as the Canard and wing root chord, tip chord, and sweep distance — into a calculator, you can find the static margin, which ideally should be between 5 to 15%. This calculation will help you position the aerodynamic center, neutral point, and the CG.

In CAD software like Onshape, sketching the design and measuring the necessary parameters can further assist in pinpointing the CG and neutral point. Mark these points on your design to ensure stability and proper flight characteristics.

Conclusion

Designing a Canard airplane involves careful consideration of wing area allocation, pitch stability requirements, and design specifics like aspect ratio and airfoil camber. By following these guidelines and using the right tools for calculations and design, you can create a stable and well-performing Canard model airplane. Happy designing, and may your Canard aircraft take flight with success!
